Mobile screw conveyor

Ø100 to Ø150 mm

The mobile solution if you need to react flexibly

Your benefits:

  • Flexibly, fast and location-independent using
  • Easy handling
  • High flow rate
  • Quick and easy height adjustment
  • Inlet hopper with protective grill and flow control
  • Drive unit with v- belt drive
  • Galvanized construction for long life

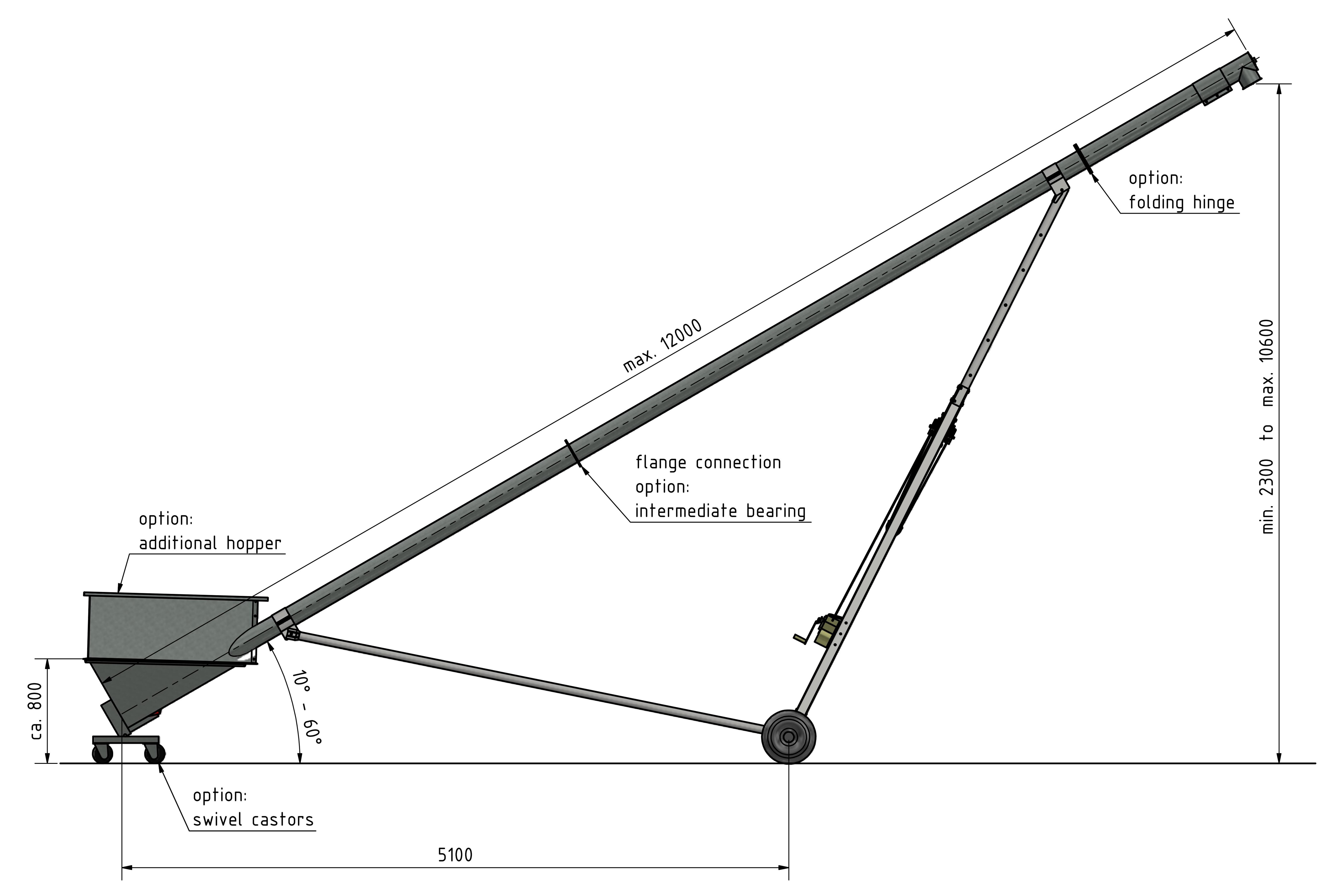

Options:

  • Outlet with folding hinge (can also be used while folded)
  • Swivel castors at the inlet funnel
  • Additional hopper with lid
  • Intermediate bearing
  • Made of stainless steel



On request, you can get further variations individual for your needs.

Inlet hopper with protective grill, flow control and rollers
option: swivel castors
Option: folding joint incl. intermediate bearing

Conveying capacity (t/h)

Tendency Ø 100 mm Ø 150 mm
30° 8 – 10 20 – 30
60° 5 – 8 15 – 20

Performance with a bulk weight of 750 kg / tm³ and a grain moisture of approx. 15%.
Depending on the filling level and purity of the product

Download the data sheet here.

Technical changes reserved.
